RK300-03 Carbon Dioxide CO2 Sensor

RK300-03 Carbon Dioxide CO2 Sensor RK300-03 Carbon Dioxide CO2 Sensor RK300-03 Carbon Dioxide CO2 Sensor

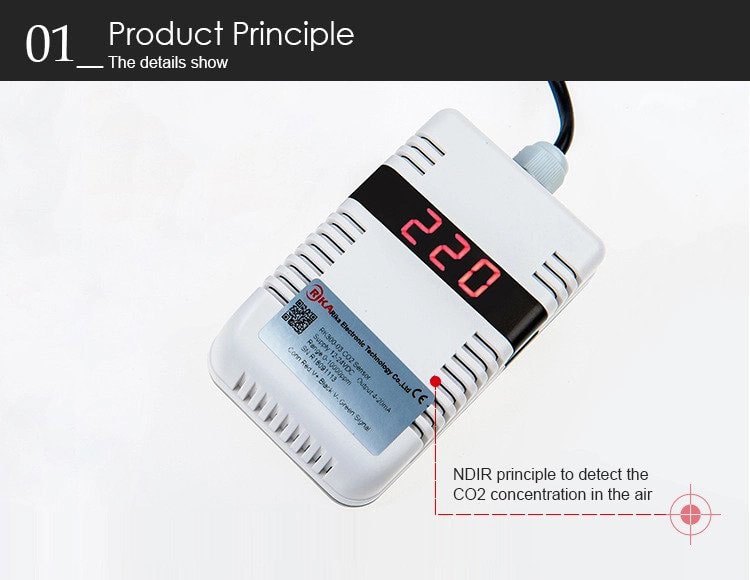

The RK300-03 CO2 transmitter uses the NDIR principle to detect the CO2 concentration in the air. The sensor has advanced infrared absorption gas detection technology and is designed with precise optical paths and perfect circuitry and has a long life.

RK300-03 Datasheet

Features

  • High Sensitivity
  • Fast response time
  • Long service life
  • Low consumption
  • Good stability of output
  • Long-term use

Applications

  • Environmental monitoring
  • Livestock farm
  • Storage
  • Forestry
  • Greenhouse
  • Agriculture

Item
Technical Specification

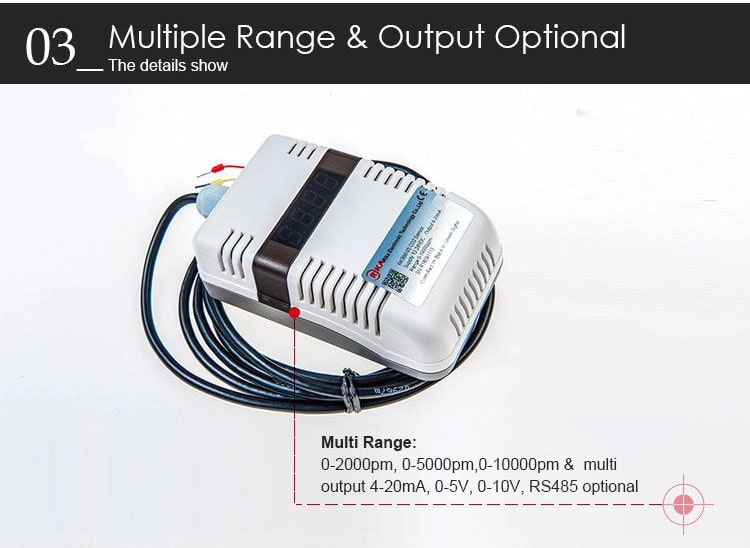

Range (concentration)
0-5000ppm, 0-10000ppm
Accuracy
±50ppm+2%rdg@25℃
Supply
5VCD, 12-24VDC
Output
4-20mA, 0-5V, RS485
Power Consumption
<0.25W
Warm Up Time
3min
Response Time
<20s
Temperature Drift
≤0.2%FS/℃
Stability
<±40ppm/year
Repeatability
<±1%FS
Operating Temperature
-20℃-+60℃@15-80%RH
Storage
-40-70℃@20%-90%RH

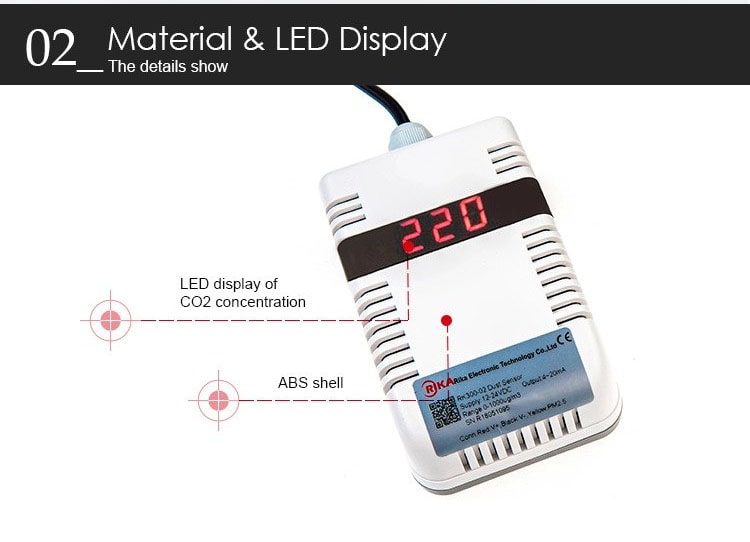

Shell Material
ABS

Product Images

RK300-03 Carbon Dioxide CO2 Sensor RK300-03 Carbon Dioxide CO2 Sensor RK300-03 Carbon Dioxide CO2 Sensor RK300-03 Carbon Dioxide CO2 Sensor
For information and offer Contact Us
