RK400-04 Rain Gauge Sensor

RK400-04 Rain Gauge Sensor RK400-04 Rain Gauge Sensor RK400-04 Rain Gauge Sensor

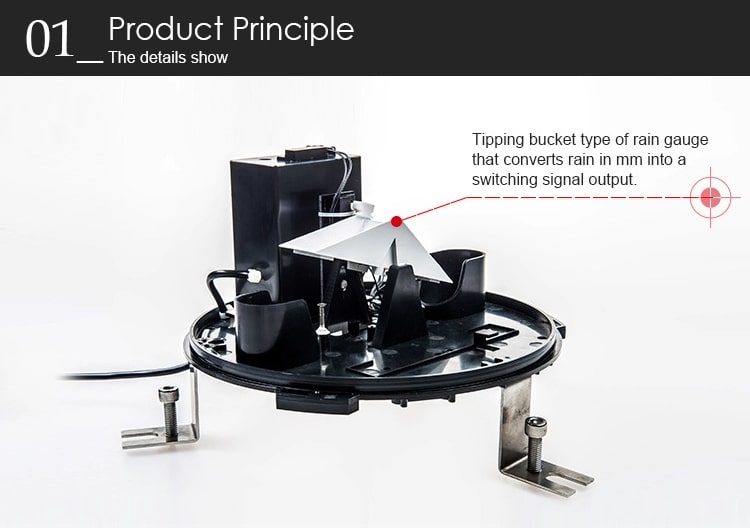

RK400-04 Rain Gauge Sensor is a hydrological, meteorological instrument used to measure the nature of rainfall and converts the rainfall into an impact signal output. You ask; It can be used in meteorology, hydrology, agriculture, forestry, field monitoring stations and other industries. In conjunction with the datalogger, it can be used to measure precipitation, precipitation intensity and precipitation duration. The product has IP65 and CE certification.

RK400-04 Datasheet

Features

  • Low starting threshold
  • Great dynamic characteristics
  • Overall carbon fiber material
  • Strong corrosion resistant ability

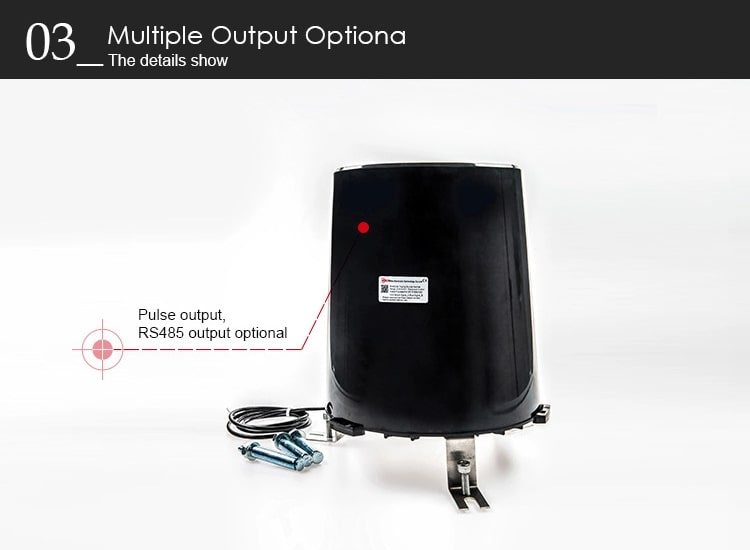

  • Various output signals optional
  • Easy Installation

Applications

  • Weather monitoring stations
  • Ports
  • Solar and wind power generation
  • Mobile weather monitoring vehicles
  • Remote airports & helipads

Item
Technical Specification
Collector
diameter :φ200mm, height: 271mm
Measured rainfall intensity
Max:4mm/min
Allow rainfall intensity
Max:8mm/min
Resolution
0.2mm
Accuracy(2mm/min)
±4%
Maximum load voltage
30VDC(pulse output)
Maximum load current
20mA
Output
Pulses(@10kΩ&0.01uF),RS485(12-24VDC supply)
Operating temperature
0-60℃@0%-100%RH

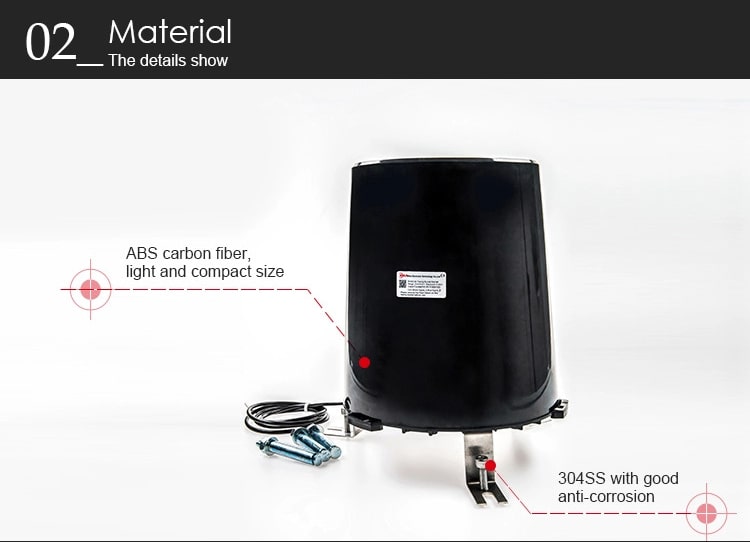

Main material
Rainfall collector & tipping bucket: ABS, Supporting leg:304SS
Weight(unpacked)
2kg

Product Images

RK400-04 Rain Gauge Sensor RK400-04 Rain Gauge Sensor RK400-04 Rain Gauge Sensor RK400-04 Rain Gauge Sensor RK400-04 Rain Gauge Sensor
